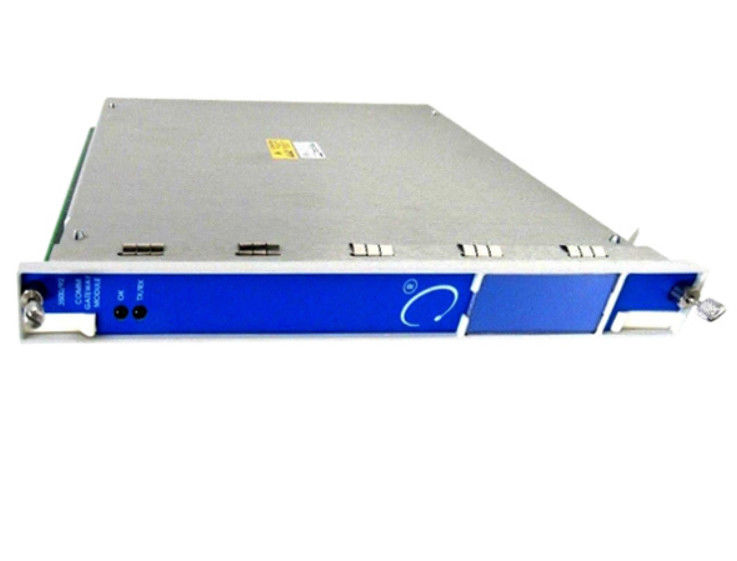

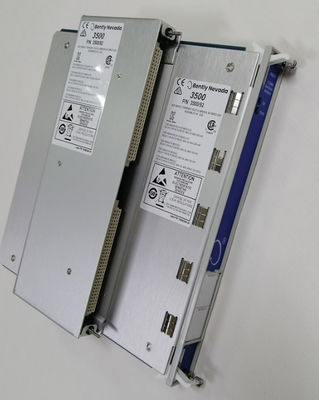

Bently Nevada 3500/92-02-01-00 Communication Gateway

Description

The 3500/92 Communication Gateway module provides extensive communication capabilities of all rack monitored values and statuses for
integration with process control and other automation systems using both Ethernet TCP/IP and serial (RS232/RS422/RS485) communications capabilities. It also permits Ethernet communications with 3500 Rack Configuration Software and Data Acquisition Software.

Supported protocols include:
    • Modicon® Modbus® protocol (via serial communications)
    • Modbus/TCP protocol (a variant of serial Modbus used for TCP/IP Ethernet communications)
    • Proprietary Bently Nevada protocol (for communication with 3500 Rack Configuration and Data Acquisition Software packages)

The Ethernet connection to the 3500/92 is an RJ45 connection for 10BASE-T star configuration Ethernet networks.

The 3500/92 supports the communication interfaces, communication protocols, and other features from the original 3500/90 with the exception of the primary value Modbus registers. The 3500/92 now has a Configurable Modbus Register Utility, which can provide the same functionality originally addressed by the primary value Modbus registers.

Information

Communication Gateway
3500/92-AXX-BXX-CXX
• A: I/O Module Type
      01 ModbusRS232/RS422 I/O Module
      02 ModbusRS485 I/O Module
      03 Ethernet/RS232 ModbusI/O Module
      04 Ethernet/RS485 ModbusI/O Module
• B: Memory Type
      01 Low Memory
• C: Agency Approval Option
      00 None
      01 CSA/NRTL/C
      02 CSA/ATEX

Spares
• 138629-01 3500/92 Manual
• 04425545 Grounding Wrist Strap (single use)
• 137495-01 Firmware IC (Odd bank)
• 137494-01 Firmware IC (Even bank)
• 136180-01 3500/92 Communication Gateway Module.
• 125736-01 ModbusRS232/RS422 I/O Module.
• 133323-01 ModbusRS485 I/O Module.
• 136188-01 Ethernet/RS232 ModbusI/O Module
• 136188-02 Ethernet/RS485 ModbusI/O Module
