3500/65-01-00 Bently Nevada Vibration Monitoring System 16 Channel Temperature Monitor

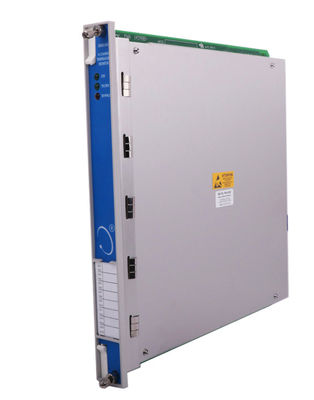

Bently Nevada 3500/65-01-00 16-Channel Temperature Monitor

Description

The 3500/65 monitor provides 16 channels of temperature monitoring and accepts both resistance temperature detector (RTD) and isolated tip thermocouple (TC) temperature inputs. The monitor conditions these inputs and compares them against user-programmable alarm setpoints.
The monitor is programmed using the 3500 Rack Configuration Software. You can configure the 16-Channel Temperature Monitor to accept isolated tip thermocouples, 3-wire RTD, 4-wire RTD, or a combination of TC and RTD inputs.
In Triple Modular Redundant (TMR) configurations, you must install temperature monitors in groups of 3 adjacent monitors. In this configuration the monitor uses 2 types of voting to ensure accurate operation and to avoid singlepoint failures.

Information

3500/65-AA-BB
• A: I/O Module Type
      01  RTD/Isolated Tip TC with Internal Terminations
      02  RTD/Isolated Tip TC with External Terminations
• B: Agency Approval Option
      00  None
      01  CSA/NRTL/C
      02  CSA/ATEX

Cables
3500/65 Transducer (XDCR) Signal to External Termination (ET) Block Cable
134544-AAAA-BB
• A: Cable Length
      0005  5 feet (1.5 metres)
      0007  7 feet (2.1 metres)
      0010  10 feet (3 metres)
      0025  25 feet (7.5 metres)
      0050  50 feet (15 metres)
      0100  100 feet (30.5 metres)
• B: Assembly Instructions
      01  Not Assembled
      02  Assembled

Spares
• 172931 3500/65 User Guide

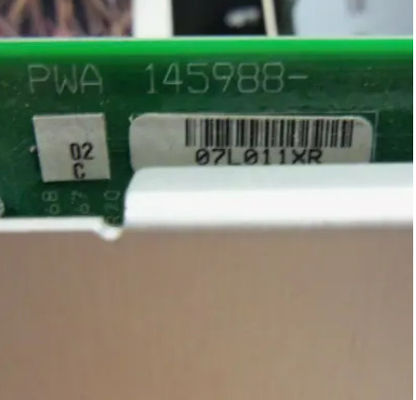

• 145988-02 3500/65 Monitor
• 172103-01 3500/65 RTD/Isolated Tip TC I/O Module, Internal Terminations
• 173005 Connector Header, Internal Termination, 20-position, Black
• 172109-01 3500/65 RTD/ Isolated Tip TC I/O Module, External Terminations
• 172115-01 RTD/Isolated Tip TC External Termination Block (Euro Style Connectors) Specifications
