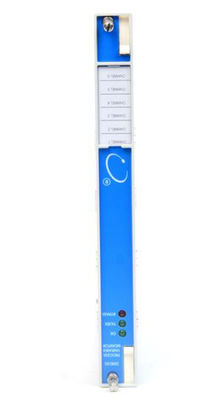

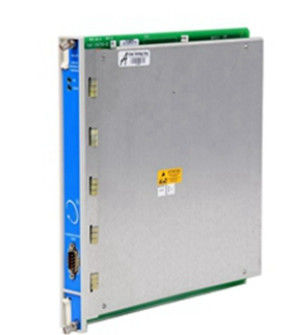

3500/62-03-00 Bently Nevada Monitor 6 Channel Process Variable Monitor

3500/62-03-00 Bently Nevada Monitor 6 Channel Process Variable Monitor
3500/62-03-00 Bently Nevada Monitor 6 Channel Process Variable Monitor 3500/62-03-00 Bently Nevada Monitor 6 Channel Process Variable Monitor

Large Image :  3500/62-03-00 Bently Nevada Monitor 6 Channel Process Variable Monitor

Product Details:
Place of Origin: USA
Brand Name: Bently Nevada
Certification: ATEX
Model Number: 3500/62-03-00
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: 12-18 weeks
Payment Terms: T/T, Allipay, paypal
Supply Ability: 100pcs per month
Detailed Product Description
Manufacturer: Bently Nevada Model Number: 3500/62-03-00
Product Type: Process Variable Monitor Agency Approval Option: None
I/O Module Type: Isolated +4 To +20 MA I/O Module With Internal Terminations Country Of Origin: USA
Factory Warranty: 12 Months Weight: Weight
Highlight:

3500/62-03-00 bently nevada monitor

,

bently nevada monitor 6 Channel

,

bently nevada 3500 62

Bently Nevada 3500/62-03-00 Process Variable Monitor



Description

The 3500/62 Process Variable Monitor is a 6-channel monitor for processing machine critical parameters that merit continuous monitoring, such as pressures, flows, temperatures, and levels. The monitor accepts +4 to +20 mA current inputs or any proportional voltage inputs between -10 Vdc and +10 Vdc. It conditions these signals and compares the conditioned signals to user-programmable alarm setpoints.



The 3500/62 monitor:
   • Continuously compares monitored parameters against configured alarm setpoints to drive alarms for machinery protection.
   • Provides essential machine information for both operations and maintenance personnel.



You can program the 3500/62 using the 3500 Rack Configuration Software to perform either current or voltage measurements. The 3500/62 offers I/O modules for three signal input scenarios: +/-10 Volts DC, isolated 4-20 mA, or 4-20 mA with Intrinsically Safe zener barriers. The Internal Barrier I/O provides external power input terminals to provide intrinsically safe power to the 4-20 mA transducers



When used in a Triple Modular Redundant (TMR) configuration, you must install Process Variable Monitors adjacent to each other in groups of three. When used in this configuration, the monitor employs two types of voting to ensure accurate operation and to avoid loss of machinery
protection due to single-point failures.



Information

Process Variable Monitor
3500/62-AA-BB
• A: I/O Module Type
      01 -10 to +10 Vdc I/O Module with Internal Terminations
      02 -10 to +10 Vdc I/O Module with External Terminations
      03 Isolated +4 to +20 mA I/O Module with Internal Terminations
      04 Isolated +4 to +20 mA I/O Module with External Terminations
      05 Non-Isolated +4 to +20 mA I/O Module with Internal Barriers and Internal Terminations
• B: Agency Approval Option
      00 None
      01 CSA/NRTL/C
      02 ATEX/CSA (Class 1, Zone 2)



External Termination Blocks
• 136595-01 3500/62 External Termination Block (Terminal Strip Connectors).
• 136603-01 3500/62 External Termination Block (Euro Style Connectors).



Cables
3500/62 Transducer (XDCR) Signal to External Termination (ET) Block Cable
134544-AAAA-BB
• A: Cable Length
      0005 5 feet (1.5 metres)
      0007 7 feet (2.1 metres)
      0010 10 feet (3 metres)
      0025 25 feet (7.5 metres)
      0050 50 feet (15 metres)
      0100 100 feet (30.5 metres)
• B: Assembly Instructions
      01 Not assembled
      02 Assembled



Spares
• 163179-03  3500/62 monitor
• 136590-01  Firmware IC
• 04425545  Grounding wrist strap (single use)
• 04400037  IC removal tool
• 136491-01  -10 Vdc to +10 Vdc I/O Module with internal terminations
• 136499-01  -10 Vdc to +10 Vdc I/O Module with external terminations
• 136294-01  Isolated +4 to +20 mA I/O Module with internal terminations
• 136483-01 Isolated +4 to +20 mA I/O Module with external terminations
• 137110-01  4 to 20 mA Barrier I/O Module with internal terminations
• 136973  3500/62 User Guide
• 01700059  Replacement fuse for barrier I/O



3500/62-03-00 Bently Nevada Monitor 6 Channel Process Variable Monitor 0

Related Product Recommendation:

3500/42-02-CN 3500/65-02-00 3500/15-05-07-00
3500/25-01-05-CN 3500/94M-05-00-00 3500/15-07-07-00
3500/25-02-03-00 3500/70M-01-00 3500/92-02-01-CN
3500/42-04-CN 3500/25-02-04-00 3500/05-01-02-00-00-01
3500/42-06-CN 3500/61-02-00 3500/15-07-07-CN
3500/45-02-00 3500/94-06-00-00 3500/22-01-01-00
3500/42-05-00 3500/05-01-03-CN-00-01 3500/22-01-02-00
3500/25-02-01-00 3500/62-03-CN 3500/25-01-01-00
3500/62-01-00 3500/60-01-CN 3500/25-01-01-CN
3500/60-05-00 3500/25-02-01-CN 3500/25-01-03-00
3500/42-01-CN 3500/15-07-00-CN 3500/25-02-02-CN
3500/94M-02-02-00 3500/92-03-01-CN 3500/32-01-00
3500/42-09-00 3500/72-01-00 3500/32-01-CN
3500/92-01-01-CN 3500/33-04-CN 3500/33-01-00
3500/05-02-04-00-00-01 3500/25-02-03-CN 3500/33-01-CN
3500/22-01-01-CN 3500/15-04-05-00 3500/33-02-00
3500/61-01-CN 3500/15-07-05-00 3500/40-01-00
3500/40-02-00 3500/50-01-CN 3500/92-04-01-CN



Frequently Asked Questions:

Q: Does your goods are new and original?
A: Yes, they are new and original.

Q: How long warranty?
A:One-year warranty.
