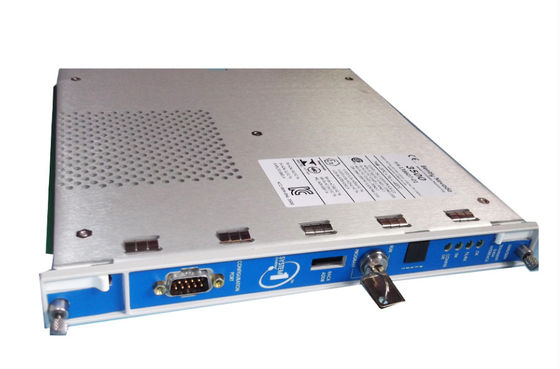

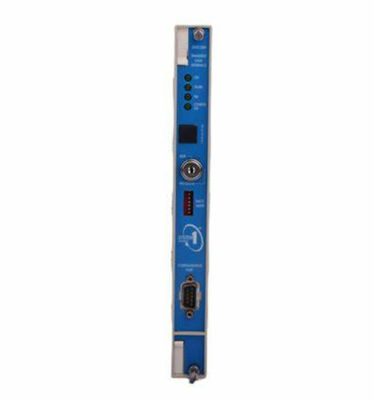

3500/22-01-01-00 Bently Nevada Transient Data Interface 24.18 cm x 2.44 cm x 24.13 cm

3500/22-01-01-00 (288055-01+146031-01) Bently Nevada Transient Data Interface

288055-01-Standard Transient Data Interface Module With USB Cable

146031-01-Transient Data Interface I/O Module

Description
The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module
(RIM) with the data collection capability of a communication processor such as TDXnet.
The TDI resides in the slot adjacent to the power supplies of a 3500 rack. It interfaces with M series monitors (3500/40M, 3500/42M, etc.) to continuously collect steady state and transient dynamic (waveform) data and pass this data through an Ethernet link to the host software. Refer to the Compatibility section at the end of this document for more information.

Static data capture capability is standard with the TDI. However, using an optional Channel Enabling Disk will allow the TDI to capture dynamic and high-resolution transient data as well. The TDI incorporates the communication processor function within the 3500 rack.

Information

3500/22M TDI Module and I/O
3500/22-AA-BB-CC
A: Transient Data Interface Type
    01 Standard (use for standard monitoring applications)
B: I/O Module Type
    01 10Base-T/100Base-TX Ethernet
    02 100Base-FX (Fiber Optic) Ethernet
    03 10Base-T/100Base-TX Ethernet with gold-plated OK Relay contacts
    04 100Base-FX (fiber optic) Ethernet with gold-plated OK Relay contacts
C: Agency Approval
    00 None
    01 CSA/NRTL/C (Class 1, Division 2)
    02 Multi (CSA, ATEX, IECEx)
