MTL4573 MTL Instruments Temperature Converter THC RTD Input Number Of Channels One

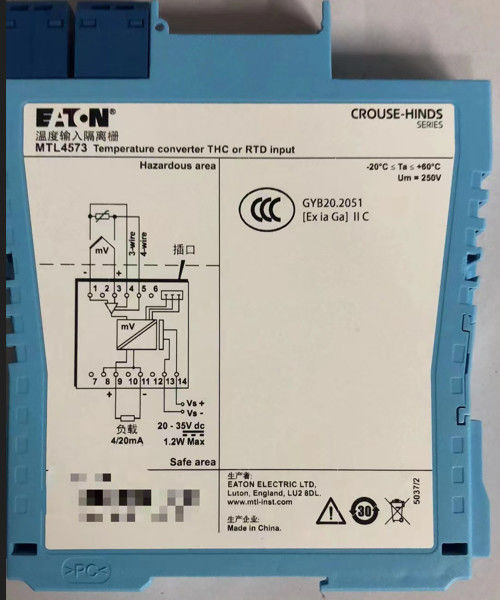

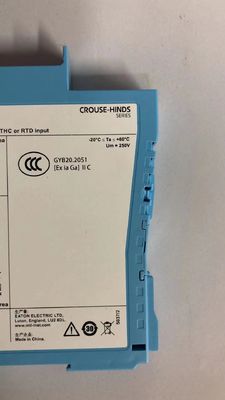

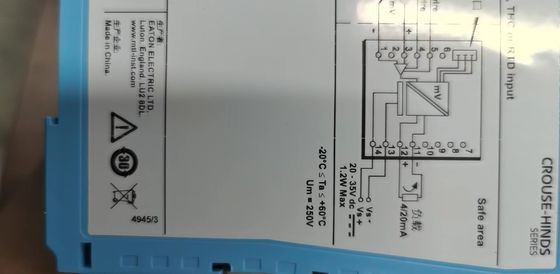

MTL4573 MTL Instruments TEMPERATURE CONVERTER THC Or RTD Input

The MTL4573 converts a low-level dc signal from a temperature sensor mounted in a hazardous area into a 4/20mA current for driving a safe-area load. Software selectable features include linearisation, ranging,monitoring, testing and tagging for all thermocouple types and 2-, 3-or 4-wire RTDs. (For thermocouple applications the HAZ-CJC plug on terminals 1–3 includes an integral CJC sensor). Configuration is carried out using a personal computer.

SPECIFICATION
See also common specification
• Number of channels
     One
• Location of signal source
     Zone 0, IIC, Hazardous area
     Division 1, Groups A-D, hazardous location
• RTD excitation current
     200µA nominal
• Cold junction compensation, THC input
     Selectable ON or OFF
• Cold junction compensation error
     ≤ 1.0°C
• Common mode rejection
     120dB for 240V at 50Hz or 60Hz
• Series mode rejection
     40dB for 50Hz or 60Hz
• Calibration accuracy (at 20°C)
  (includes hysteresis, non-linearity and repeatability)
     Inputs:
        mV/THC:            ± 15µV or ± 0.05% of input value
                                   (whichever is greater)
        Pt 100 - RTD:     ± 80mΩ
     Output:                  ± 11µA
• Temperature drift (typical)
     Inputs:
        mV/THC:            ± 0.003% of input value/°C
        Pt 100 - RTD:     ± 7mΩ/°C
     Output:                  ± 0.6µA/°C
• Example of calibration accuracy and temperature drift
  (RTD input)
     Span:                           250Ω
     Accuracy:                    ± (0.08/250 + 11/16000) x 100%
                                             = 0.1% of span
     Temperature drift:       ± (0.007/250 x 16000 + 0.6) µA/°C
                                             = ±1.0µA/°C
• Safety drive on sensor failure
     Upscale, downscale, or off
• Early burnout
     Early burnout detection for thermocouples (when selected)
     EBD indicated when loop resistance increase is > 50Ω
• Output range
     4 to 20mA nominal into 600Ω max.
     Out of range characteristic - MTL or NAMUR NE43
• Maximum lead resistance (THC)
     600Ω with safety drive on sensor failure enabled.
     >10kΩ with safety drive on sensor failure disabled
• Response time
     Typical 500 ms
• LED indicator
     Green: EBD alarm indication, power and status indication
     Yellow: alarm indication
• Maximum current consumption (with 20mA signal)
     50mA at 24V
• Power dissipation within unit (with 20mA signal)
     1.2W at 24V
• Safety description
     Refer to certificate for parameters. Um=253V rms or dc

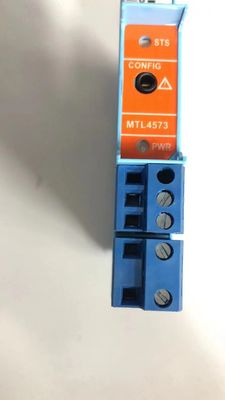

• Configurator
     A personal computer running MTL PCS45 software with a PCL45USB serial interface.
