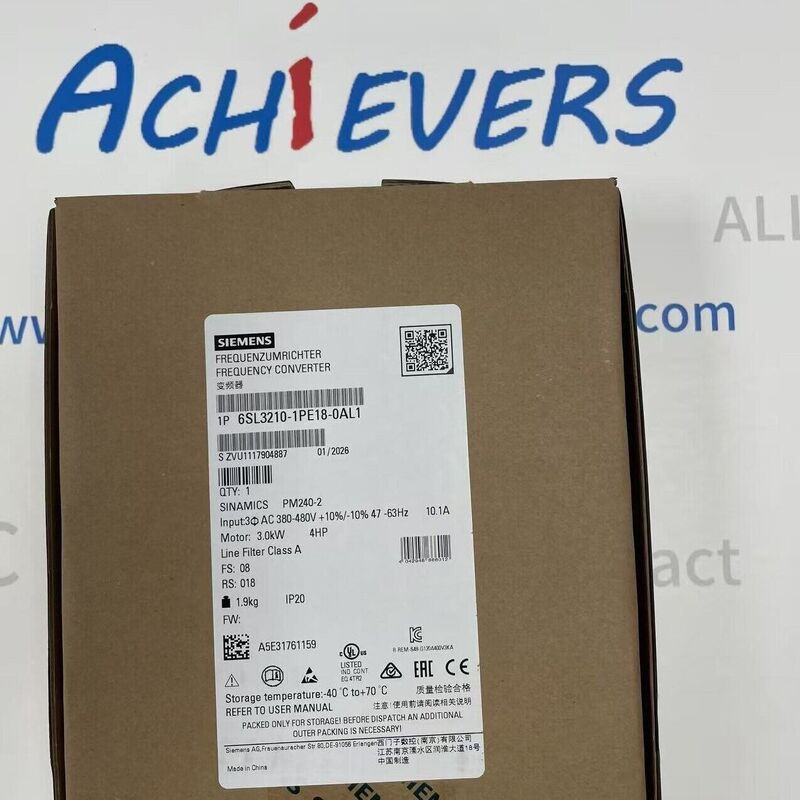

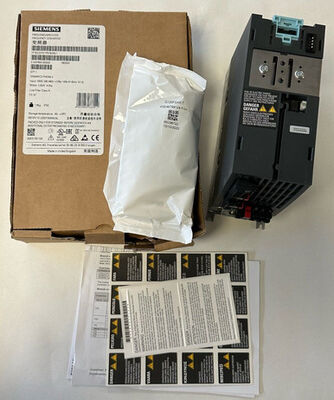

6SL3210-1PE18-0AL1 high-performance power module
Product Details:
Description:module
Product No. : 6SL3210-1PE18-0AL1
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The 6SL3210-1PE18-0AL1 is a high-performance power module, exclusively engineered to integrate seamlessly with module ndustrial automation systems. As a core component of ’ SINAMICS PM240-2 product lineup, this power module is designed for variable frequency drive (VFD) applications, delivering stable power conversion and precise motor control for critical industrial scenarios, including manufacturing, mechanical engineering, and process control systems. Its design strictly adheres to ’ rigorous quality and performance standards, ensuring easy integration into existing module-based setups, reducing deployment time and enhancing system reliability — a key advantage for industrial facilities relying on module’ industry-leading automation and drive solutions.
Detail:
|
Feature Category
|
6SL3210-1PE18-0AL1 Specifications
|
Compatibility Details
|
|
Power Conversion Technology
|
PM240-2 series; Vector control; 3-phase AC input; Integrated Class A filter and braking chopper; 3kW low overload (LO), 2.2kW high overload (HO) rated power
|
Compatible with G120 drive systems; Seamlessly integrates with control units (CU) with firmware version 4.6 and above
|
|
Protection & Safety
|
IP20 protection rating; Overload protection (110% for 57s, 150% for 3s in LO mode); Short-circuit and overvoltage protection; Suitable for safety-integrated applications
|
Matches industrial safety standards; Compatible with fail-safe control units for Safety Integrated drive solutions
|
|
Design & Installation
|
Panel-mount design; Dimensions (HxWxD): 196mm x 73mm x 165mm; Plug-in screw terminals; Internal air cooling; Net weight: 1.5kg
|
Fits ’ standard panel-mount specifications; Compatible with ’ wiring accessories and cable management solutions
|
|
Performance & Efficiency
|
Efficiency: 0.96; Output frequency: 0-550Hz (vector control), 0-200Hz (V/f control); Power loss: 76W (100% load); Sound pressure level: 72dB (1m)
|
Meets ’ performance benchmarks for PM240-2 series; Ensures consistent power supply for AC motors and drive systems
|
|
Parameter Category
|
Specification Details
|
Compatibility Alignment
|
|
Electrical Parameters
|
Input voltage: 380-480V AC ±10%, 3-phase; Input frequency: 47-63Hz; Output current: 7.7A (LO), 5.9A (HO); Max output current: 11.8A; Pulse frequency: 4kHz
|
Consistent with ’ electrical standards for drive systems; Compatible with module’ 3-phase power supply modules
|
|
Mechanical Parameters
|
Housing material: Metal; Terminal cross-section: 1.5-2.5mm²; Max motor cable length: 100m (unshielded), 50m (shielded); Installation height: Up to 1000m
|
Matches ’ PM240-2 series mechanical specifications; Compatible with ’ terminal accessories and motor cables
|
|
Environmental & Operational
|
Operating temperature: -25°C to 55°C (LO), -5°C to 50°C (HO); Storage temperature: -40°C to 70°C; Relative humidity: 95% (no condensation); Cooling air demand: 0.005m³/s
|
Environmental ratings align with module’ harsh-environment drive requirements; Compatible with ’ industrial operating conditions
|
|
Certifications & Compliance
|
Certifications: CE, UL, cUL, C-Tick (RCM), SEMI F47; Compliance with RoHS directives, Low Voltage Directive 2006/95/EC, EMC 2004/108/EC
|
Certifications match module’ global industry standards; Ensures interoperability with module’ certified automation systems worldwide
|
Brand
module develops medical imaging and diagnostics equipment, such as X - ray machines and magnetic resonance imaging (MRI) systems, playing a crucial role in modern medical diagnostics. is one of the world's largest producers of energy - efficient and resource - saving technologies. It holds leading positions in various fields, including offshore wind turbine construction, gas and steam turbines for power generation, and power transmission solutions.
