| Manufacture: | ROSEMOUNT | Product No: | 5081-P-HT-20-73 |
|---|---|---|---|
| Product Type: | Explosion-Proof Transmitter | 5081: | SMART Two-wire Microprocessor Transmitter |
| P: | PH/ORP | HT: | Analog 4-20 MA Output With Superimposed HART Digital Signal |
| 20: | Infrared Remote Controller Included | 73: | Agency Approvals : ATEX Approved Intrinsically Safe (when Used With Appropriate And Safety Barrier) |
| Highlight: | 5081 Explosion Proof Transmitter,5081-P-HT-20-73 Explosion Proof Transmitter,5081 explosion proof pressure transmitter |
||
Product Details:
Manufactuer : ROSEMOUNT
Product No. : 5081-P-HT-20-73
Product Type : Explosion-Proof Transmitter
Product Description

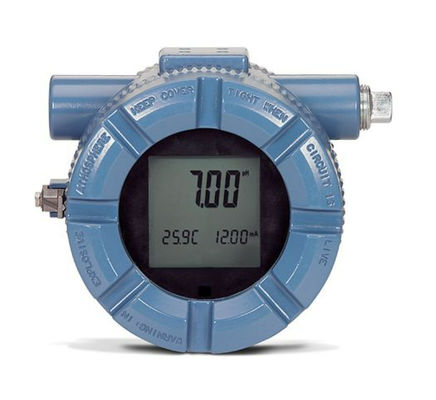

The Rosemount 5081 Explosion-Proof Transmitter is a single channel loop powered device that can accept input from a variety of liquid analysis sensors including: pH/ORP sensors, conductivity sensors (contacting and toroidal) and amperometric sensors (dissolved oxygen, chlorine and ozone). The transmitter features a rugged, weatherproof, corrosion-resistant enclosure to withstand harsh environments.
Specification:
Measurement Range:Varies by sensor type. See Product Data Sheet for details.
Operating Temperature:-4 - 149 °F (-20 - 65 °C)
Power Supply:Minimum power supply voltage is 12 Vdc. Maximum power supply voltage is 42.4 Vdc (30 Vdc for intrinsically safe operation). Power supply voltage should cover the voltage drop on the cable plus the external load resistor required for HART® communications (250 Ω minimum).
Certifications/Approvals:For details, see specifications for the measurement of interest.
Enclosure Rating:Cast aluminum containing less than 6% magnesium, with epoxy polyester coating. NEMA 4X (IP65). Neoprene O-ring cover seals.
Weight:10 lb/11 lb (4.5/5.0 kg)
Features:
Robust explosion-proof design constructed with heavy duty cast aluminum
Faster installation using Quick Start programming
Intrinsically safe, non-incendive, and explosion-proof hazardous area location approvals
Visibility of process parameters by utilizing HART® or Profibus DP digital communications
Effortlessly connect with PLCs and DCSs by choosing the HART® or FOUNDATION™ Fieldbus communication options
PARTS & ACCESSORIES:
| 24479-00 | Rosemount™ 5081 Remote Control, Infrared |
| 33342-00 | Rosemount™ Lock, Cover, Front (Also Order P/N 33343-00) |
| 33343-00 | Rosemount™ Locking Bracket Nut (Also Order P/N 33342-00) |
| 23820-01 | Rosemount™ Pipe/Wall Mounting Bracket, Stainless Steel For Models 1066, 1056, 1057, 5081, 6081, And XMT |
| 23820-00 | Rosemount™ Pipe/Wall Mounting Bracket For Models 1066, 1056, 1057, 5081, 6081, And XMT |
| 24091-00 | Rosemount™ Cell, Low Flow, .25" Inlet And Outlet |
| 33893-00 | Rosemount™ Nut, Low Flow Cell |
| 33898-00 | Rosemount™ Cell, Low Flow Molded |
| 9210012 | Rosemount™ Buffer Solution, PH 4.01, 16 Oz |
| R508-8OZ | Rosemount™ ORP Standard, 475mV, 8oz |
| 23555-00 | Rosemount™ Junction Box, Model 54/5081/1055/Xmt Compatible Preamplifier |
| 34059-00 | Rosemount™ Gasket For Panel Mounting |
| 23820-01 | Rosemount™ Pipe/Wall Mounting Bracket, Stainless Steel For Models 1066, 1056, 1057, 5081, 6081, And XMT |
| 23554-00 | Rosemount™ General Purpose Cable Gland Kit For Model 56, 1056, 1066, 54e, XMT |
| 23820-00 | Rosemount™ Pipe/Wall Mounting Bracket For Models 1066, 1056, 1057, 5081, 6081, And XMT |
