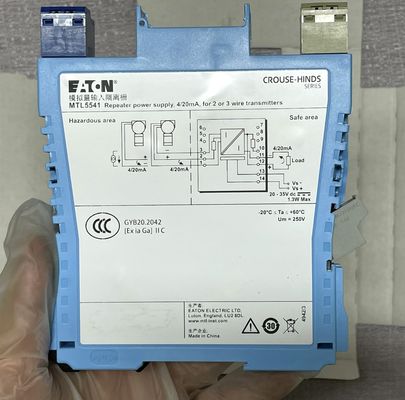

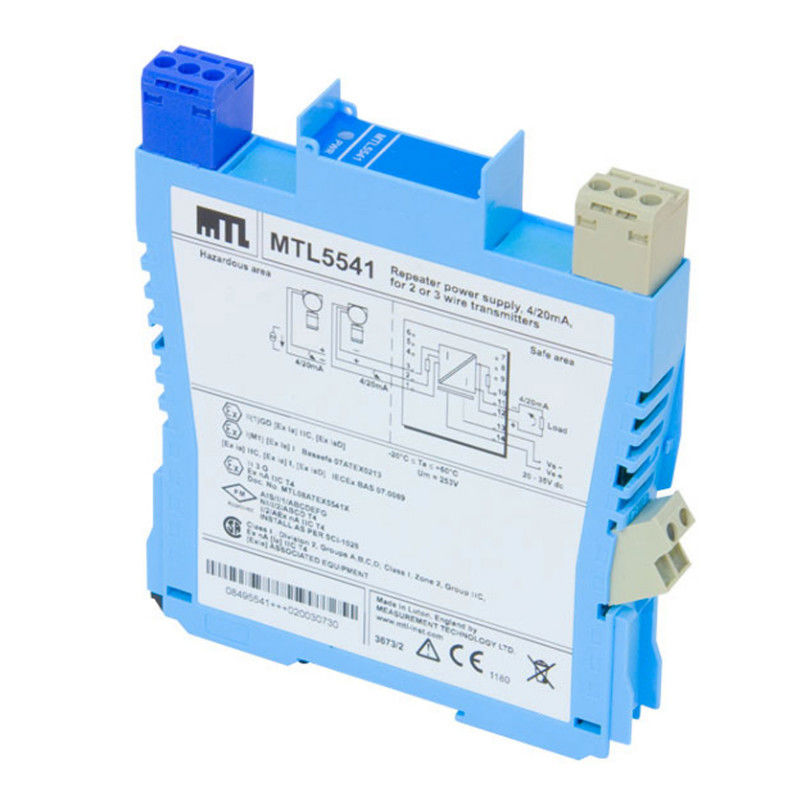

MTL5541 MTL Repeater Power Supply safety barriers
Product Details:
Manufacturer : MTL
Product No. : mtl5541 barrier
https://www.achievers-automation.com More Products
The MTL5541 provides a fully-floating dc supply for energising a conventional 2- or 3-wire 4/20mA transmitter, which is located in a hazardous area, and repeats the current in another floating circuit to drive a safe-area load. For HART 2-wire transmitters, the unit allows bi-directional communications signals superimposed on the 4/20mA loop current.
SPECIFICATION
See also common specification
• Number of channels
One
• Location of transmitter
Zone 0, IIC, T4–6 hazardous area if suitably certified
Div. 1, Group A hazardous location
• Safe-area output
Signal range: 4 to 20mA
Under/over-range: 0 to 24mA
Safe-area load resistance (MTLx541)
@ 24mA: 0 to 360Ω
@ 20mA: 0 to 450Ω
Safe-area circuit output resistance: > 1MΩ
• Safe-area circuit ripple
< 50µA peak-to-peak
• Hazardous-area input
Signal range: 0 to 24mA (including over-range)
Transmitter voltage: 16.5V at 20mA
• Transfer accuracy at 20°C
Better than 15µA
• Temperature drift
< 0.8µA/°C
| • Hazardous-area input |
Signal range: 0 to 24mA (including over-range) |
|
Transmitter voltage: 16.5V at 20mA |
| • Transfer accuracy at 20°C |
Better than 15µA |
| • Temperature drift |
< 0.8µA/°C |
| • Response time |
Settles to within 10% of final value within 50µs |
| • Communications supported |
HART (terminals 1 & 2 only) |
| • LED indicator |
Green: power indication |
| • Maximum current consumption (with 20mA signal) |
51mA at 24V |
| • Power dissipation within unit (with 20mA signal) |
MTLx541 0.7W @ 24V dc |
|
MTLx541S 1.0W @ 24V dc |
| • Safety description |
Terminals 2 to 1 and 3: |
|
Uo=28V Io=93mA Po=651mW Um = 253V rms or dc |
|
Terminals 1 to 3: |
|
Simple apparatus ≤1.5V, ≤0.1A and ≤25mW; can be connected without further certification into any IS loop with an open-circuit |
|
voltage <28V |
